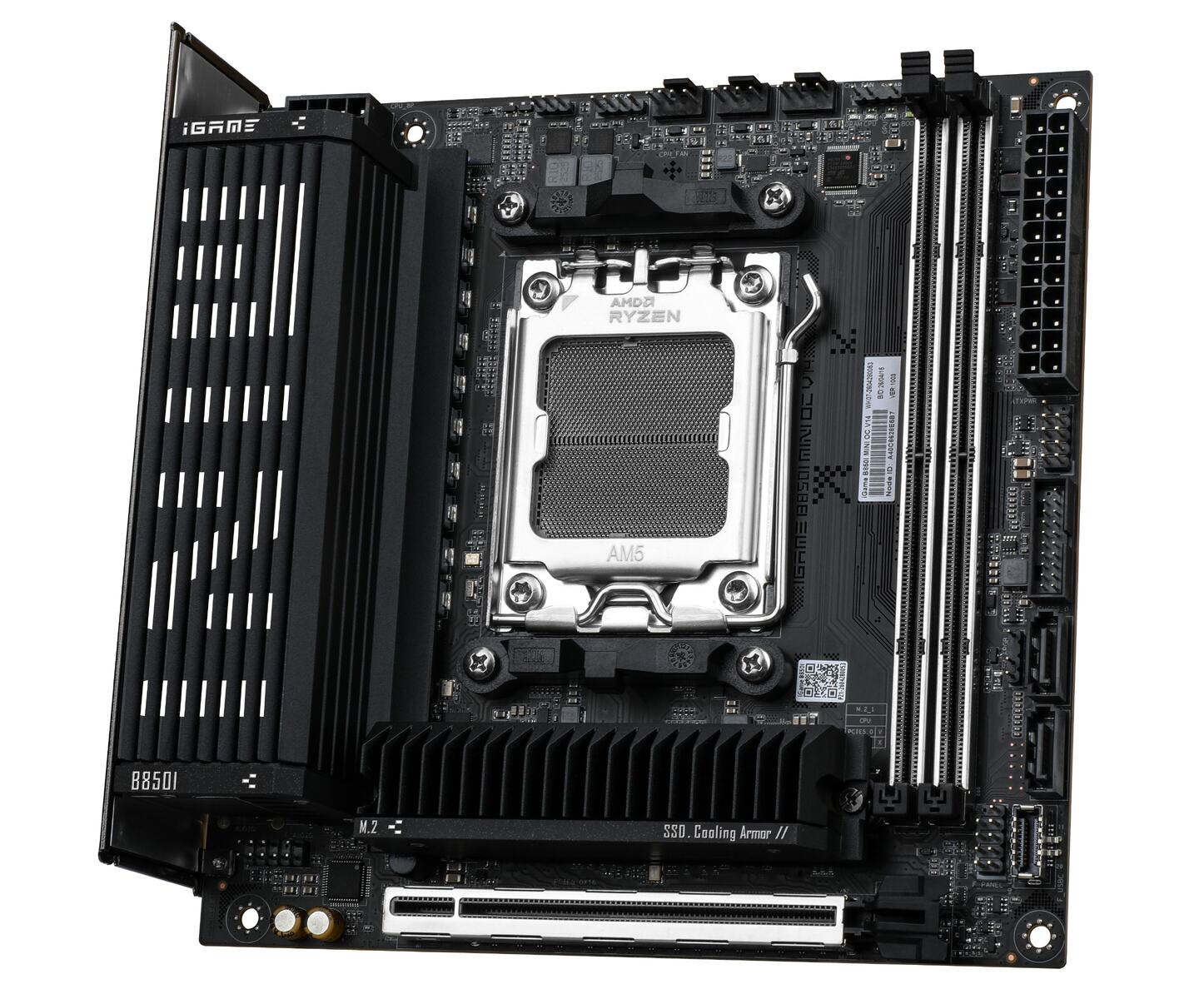

Colorful Unveils iGame B850I Mini OC V14: Premium Mini-ITX AM5 Motherboard for SFF Builds
Colorful has announced the launch of the iGame B850I Mini OC V14, a high-end Mini-ITX motherboard designed for AMD’s Socket AM5 platform. This compact motherboard is crafted to complement Colorful’s iGame Mini series of small form factor (SFF) GeForce RTX 50-series graphics cards, including the powerful RTX 5070 Mini OC. With its premium features and robust build, the iGame B850I Mini OC V14 is tailored for enthusiasts seeking top-tier performance in a compact PC build.
Power Delivery and Memory Support
The iGame B850I Mini OC V14 draws power through a standard 24-pin ATX connector and a single 8-pin EPS connector, ensuring stable and efficient power delivery. The motherboard features a 9+2+1 phase VRM design utilizing 60A DrMOS, providing reliable power for high-performance Ryzen processors. For memory, the board offers two reinforced DDR5 DIMM slots, supporting the latest high-speed DDR5 RAM modules for enhanced multitasking and gaming performance.
Expansion and Storage Options
This Mini-ITX motherboard includes a single reinforced PCI Express 5.0 x16 slot, ideal for modern graphics cards. Storage is a highlight, with two M.2-2280 slots—both supporting PCIe Gen 5 speeds. One M.2 slot is located on the front side and features a substantial aluminum heatsink for optimal thermal management, while the second is positioned on the reverse side. Importantly, both M.2 slots are wired directly to the processor, ensuring they do not share or subtract PCIe lanes from the main graphics slot. Additionally, the board provides two SATA 6 Gbps ports for traditional SSDs or HDDs.
Comprehensive Connectivity
The iGame B850I Mini OC V14 offers extensive connectivity options. For USB, users benefit from a 20 Gbps USB 3.2 Gen 2x2 front-panel header, two USB 3.2 Gen 1 ports via a separate front-panel header, and a rear I/O panel featuring one 10 Gbps USB 3.2 Gen 2 Type-A, two 5 Gbps USB 3.2 Gen 1, and four USB 2.0 ports. Display outputs include both HDMI and DisplayPort, supporting a wide range of monitors and display configurations.
Advanced Networking and Audio
Networking capabilities are cutting-edge, with integrated Wi-Fi 7 and Bluetooth 5.4 provided by a MediaTek MT7925 160 MHz WLAN adapter. Wired networking is handled by a high-speed 5 GbE interface powered by the Realtek RTL8126-CG PHY, catering to demanding data transfer needs. For audio, the motherboard is equipped with a Realtek ALC1200 HDA codec, delivering clear and immersive sound for gaming and media consumption.
Colorful has yet to announce pricing details for the iGame B850I Mini OC V14. With its blend of advanced features, robust power delivery, and compact design, this motherboard is set to appeal to SFF PC enthusiasts and gamers looking to build a powerful yet space-efficient system.
