Axiomtek Unveils PICO570: Compact Pico-ITX Board with Integrated AI Acceleration

Axiomtek, a global leader in industrial computing solutions, has announced the launch of the PICO570, its latest Pico-ITX single board computer. Designed for next-generation edge AI applications, the PICO570 leverages Intel Core Ultra processors (Series 1) and features an integrated 11 TOPS NPU, delivering efficient on-device AI inference in a remarkably compact form factor.

AI-Optimized Performance at the Edge

The PICO570 is engineered to accelerate AI workloads directly at the edge, thanks to its integrated neural processing unit (NPU). This architecture enables real-time data processing with minimal latency and optimized power consumption, making it ideal for edge AI gateways, inference nodes, and other applications requiring immediate, on-site intelligence. By handling AI inference on-device, the PICO570 simplifies system design and reduces reliance on external accelerators.

Ultra-Compact Design with High-Speed NVMe Storage

Despite its small 100 x 72 mm Pico-ITX footprint, the PICO570 is built to support demanding AI workloads. It accommodates a full-length M.2 Key M 2280 NVMe SSD via a PCIe x4 interface, ensuring rapid data access and fast model loading. This combination of integrated NPU acceleration and NVMe-class storage eliminates storage bottlenecks, enabling responsive, data-intensive AI applications in environments where space is at a premium.

Versatile Connectivity for Industrial Applications

The PICO570 offers flexible networking options with dual Ethernet ports—one 2.5GbE and one GbE. This configuration supports high-bandwidth data transfer and allows for network segmentation or dedicated remote management channels. Such versatility makes the PICO570 well-suited for smart automation controllers, robotics, intelligent retail systems, and other industrial IoT deployments.

Sustainable and Power-Efficient Edge Computing

With a focus on sustainability, the PICO570 delivers energy-efficient performance that helps reduce power consumption at the edge. Its compact design minimizes material usage, contributing to a lower carbon footprint throughout its lifecycle. This aligns with ESG goals and supports green computing initiatives in industrial environments.

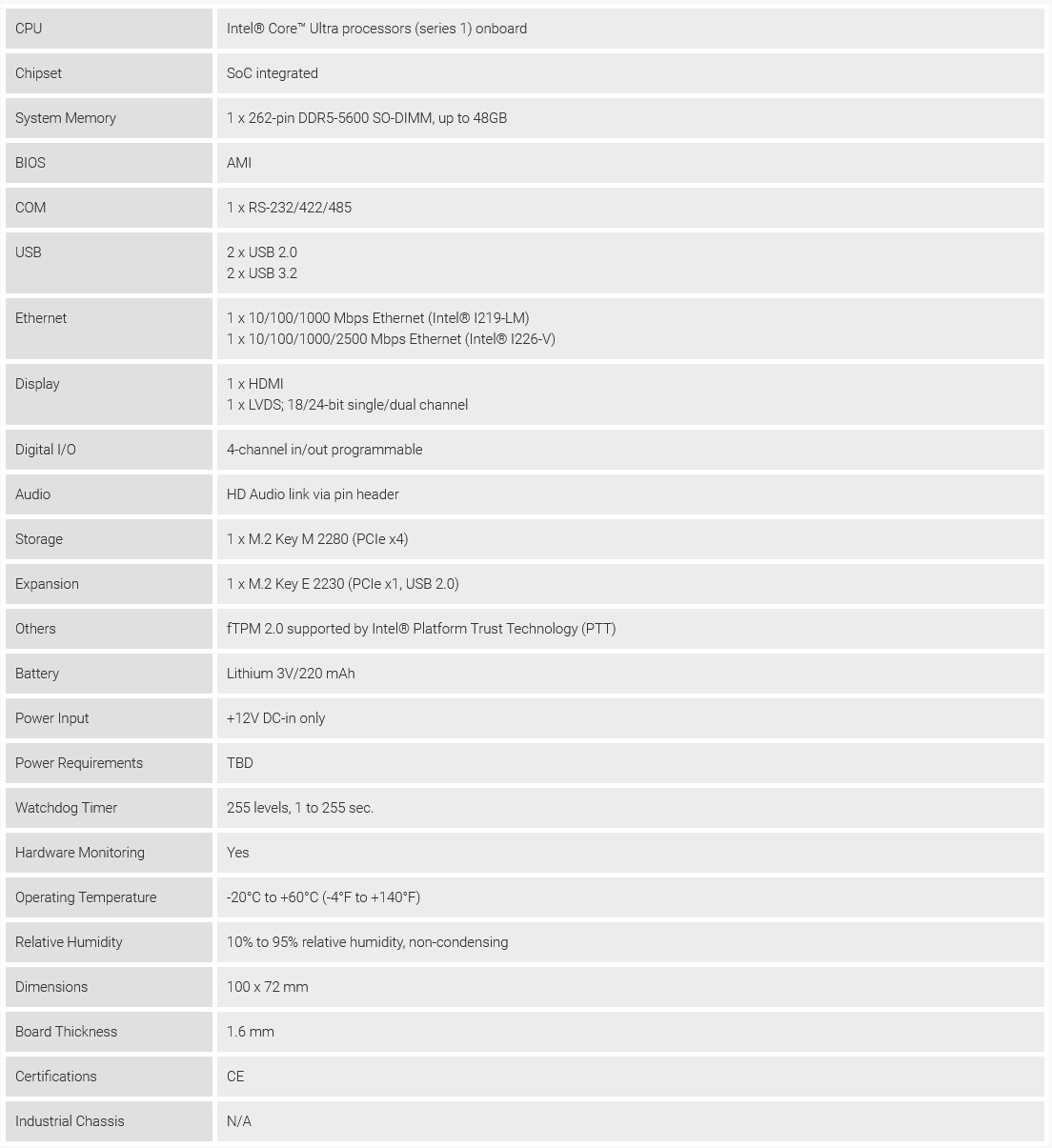

PICO570 Key Features

  • Powered by Intel Core Ultra processors (Series 1)
  • Integrated 11 TOPS NPU for on-device AI acceleration
  • Supports up to 64 GB DDR5-5600 SO-DIMM memory
  • Dual Ethernet: 1x 2.5GbE and 1x GbE ports
  • 1x M.2 Key M 2280 slot for high-speed NVMe SSD
  • 1x M.2 Key E 2230 slot for wireless module expansion
  • Ultra-compact Pico-ITX form factor (100 x 72 mm)

The Axiomtek PICO570 is now available, offering a robust, energy-efficient platform for accelerating AI deployment in medical, industrial, and smart city applications.
